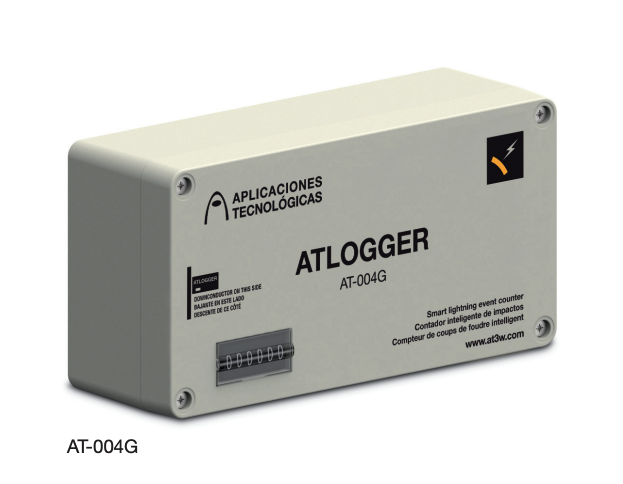

ATLOGGER – Recorder and analyser of lightning strikes to the protection system.
ATLOGGER is a recorder of electrical activity in the lightning rod’s down-conductor which, in
addition to counting the number of strikes, records the amplitude and polarity of the
lightning, as well as the date and time the impact occurred.
Authorised for use in explosive atmospheres (ATEX marking Ex ic nA IIC T3/T4 Gc)
Withstand lightning currents (100 kA, 10/350 µs) with no damage.
Installation is very easy as it does not involve interrupting the down-conductor. Simply place
it beside the down-conductor and fix it properly onto a flat surface.
The data is downloaded automatically using a USB device that enables data transfer from
different ATLOGGER devices to the reading point.
Software is included for download management by means of transfer device with USB
connection.
